ATU-Pro3 fitted with an infrared sensor
This unit has been designed to be put straight into use with only a suitable container for reservoir being required.
includes pump/pipe/mounting etc
overseas shipping available
via first class royal mail signed for £4.68 (UK)
THE ATU-PRO3 IS AS FOOLPROOF AS YOU CAN PURCHASE
Here are a few scenario's that have been reported on reef sites and what the ATU-PRO3 does if it happens.
- The float physically jams because of a snail or similar
- The float fails electrically
- The float drops into the tank
- The outlet comes adrift resulting in water outside the tank
- The reservoir runs dry (possible pump burn out}
- The pump gets jammed
- and most important R.O. reservoir "dumps" its contents into the aquarium
In every situation above only the ATU-Pro3 or Pro4 will shut the pump down after a time period set by yourself with the options of 5, 10, 20 or 60 seconds. - exclusive to Reefloat - NO other brand has this facility

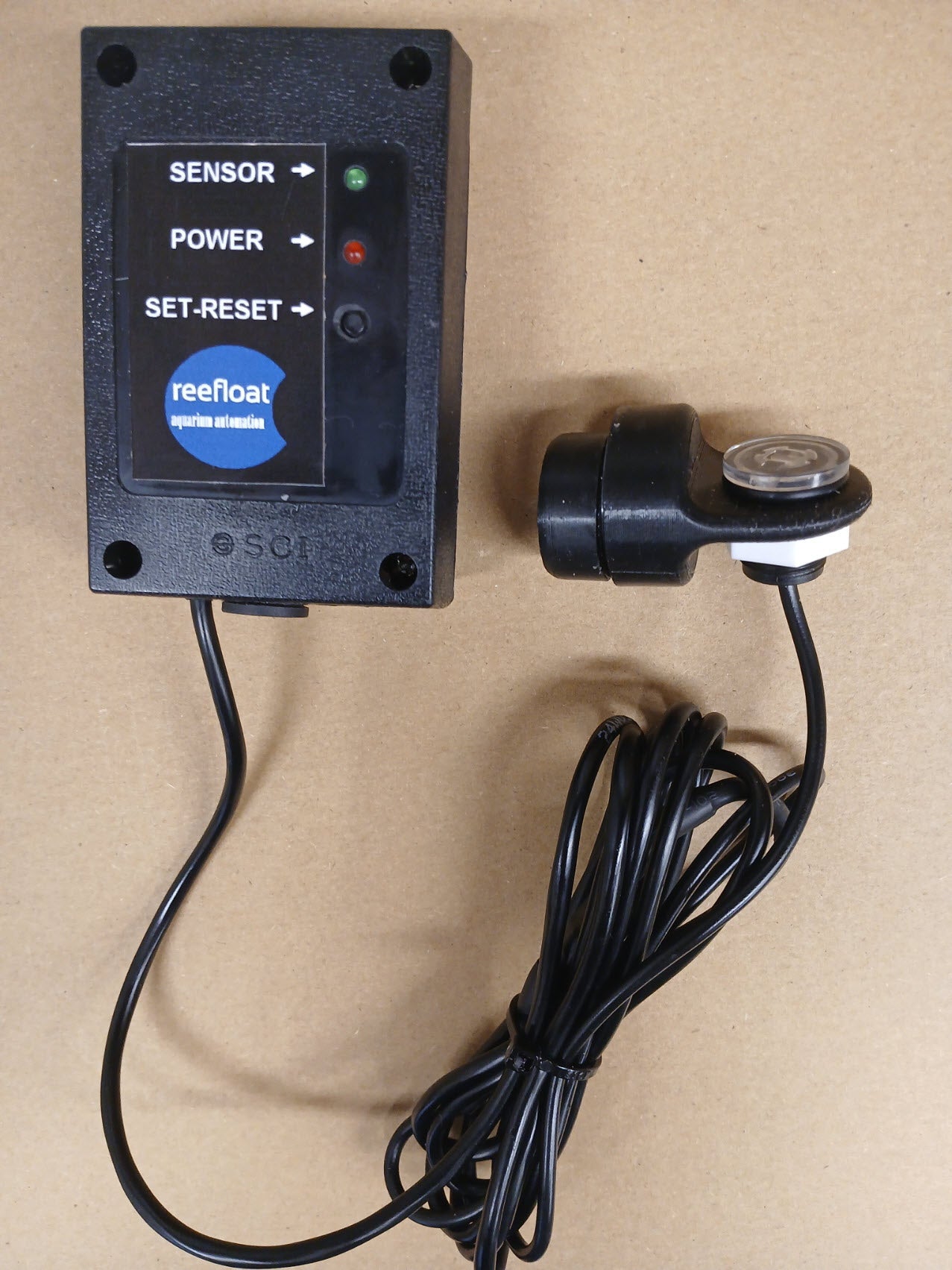

The ATU-PRO3 is pre-wired and the unit is ready to use - includes:
- The programmable controller
- Supplied with infrared sensor and bracket with 2m flex
- A low voltage pump with a maximum height of 3 metres
- A 2amp power supply
- 2 metres pipe
- full installation guide
LETS SAY SOMETHING FAILS, WHAT HAPPENS?
In a nutshell it shuts down the pump so the top-up is inoperative until you come along and reset it, indication that it has shut down is via the pump LED starts flashing and the alarm sounds for 30 seconds, sounder then repeats for 2 seconds at 15 minute intervals. Reset is a simple push of the button, once to silence the alarm and twice to full reset - if the cause of the fault is still present then it will go back into alarm state
BONUS - Anti-Wave - many are familiar with the pump switching on and off every time you stick your hands in the water, or the same things happens if you have that powerful wave maker powerhead. This is addressed by a 3 second built in float delay activation, in other words the water level has to be "LOW" for 3 seconds before the pump starts, as soon as the level reaches a "HIGH" position the pump stops immediately. The distance between high and low level is not measurable by conventional means the sensor is that accurate!
BONUS - Memory - that preset time you set up stays unless you reprogam, it is not lost on power failure!

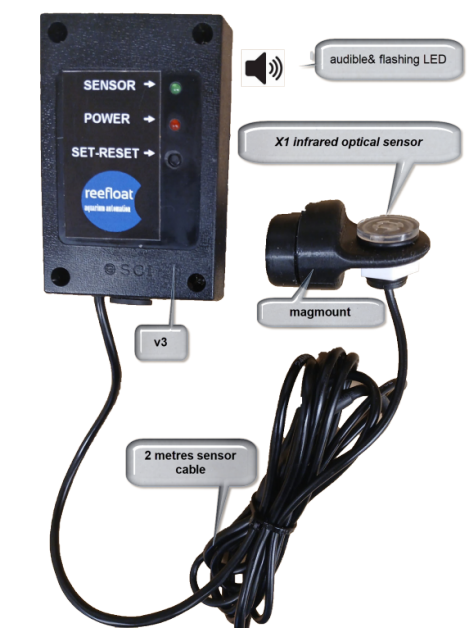

- sensor - HQ infrared
- sensor cable length 2 metres
- sensor mount magnetic
- pipe - 5mm int 8mm ext
- water level variance - less than 0.5mm
- voltage - 12v DC
- alarm - visual and audible programmable 5-60 seconds, pump auto cut-off on alarm
- pump - 12v DC with up to 2m head height
- anti-wave - 3 second delay on pump activation
Very reliable units
I bought a sensor from Gordon it arrived excellently wrapped. I had to speak to Gordon about setting it up. He was excellent, new what he was talking about and had it set up and working perfect within a few minutes. I found Gordon to be very helpful and I will give him all my future business if he can help. Thank you very much Gordon. Just to say sorry for troubling your self and your wife with ringing you. John Catterall
not a problem
Had a few issues with the branded ATU and found this through a forum and must say, not disappointed.
I’ve bought multiple products from Gordon. Different tanks so different requirements. So a few ATUs and AWC units. All still in service. Just superior to anything else I’ve ever tried and I’ve tried them all. Service too is just unbeatable.
auto topup kit - pro3
